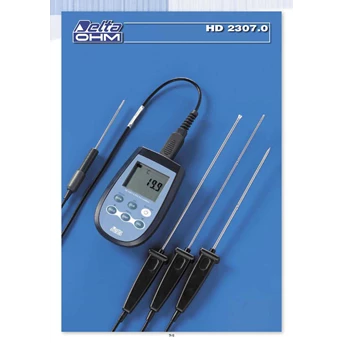

RTD THERMOMETERS HD2307.0SENSORS: Pt100, Pt1000

The HD2307.0 is a portable instrument with a large LCD display. It measures the temperature using Pt100 or Pt1000 immersion, penetration, contact or air probes. The sensor can be a Pt100 3 or 4 wires, Pt1000.The probes are fi tted with an automatic detection module, with the factory calibration settings already being memorized inside.The Max, Min and Avg function calculate the maximum, minimum or average values. Other functions include: the relative measurement REL, the HOLD function, and the automatic turning off that can also be disabled.The instruments have IP67 protection degree. • INSTRUMENT TECHNICAL CHARACTERISTICS • Instrument • Dimensions (Length x Width x Height) 140x88x38mm • Weight 160g (complete with batteries) • Materials ABS Display 2x41D2 digits plus symbols • Visible area : 52x42mm • Operating conditions • Operating temperature -5…50°C • Warehouse temperature -25…65°C • Working relative humidity 0…90%RH without condensation • Protection degree IP67Power • Batteries 3 1.5V type AA batteries • Autonomy 200 hours with 1800mAh alkaline batteries • Power absorbed with instrument off 20¼A • Measuring unit °C - °F • Connections Input module for the probes 8-pole male DIN45326 connector • Measurement of temperature by Instrument Pt100 measurement range -200…+650°C Pt1000 measurement range -200…+650°C • Resolution 0.1°C • Accuracy ±0.05°C • Drift after 1 year 0.1°C/year • Common characteristics • Resolution 0.1°C • Temperature drift @ 20°C 0.003%/°C • Common characteristics • Resolution 0.1°C • Temperature drift @ 20°C Pt100 0.003%/°C Pt1000 0.005%/°C ORDER CODES HD2307.0K: The kit is composed of the instrument HD2307.0, 3 1.5V alkaline batteries, operating manual, case. The probes must be ordered separately. Probes complete with SICRAM module TP472I: Immersion probe, sensor Pt100. Stem Ø 3 mm, length 300 mm. Cable length 2 metres. TP472I.0: Immersion probe, sensor Pt100. Stem Ø 3 mm, length 230 mm. Cable length 2 metres. TP473P.0: Penetration probe, sensor Pt100. Stem Ø 4mm, length 150 mm. Cable length 2 metres. TP474C.0: Contact probe, sensor Pt100. Stem Ø 4mm, length 230mm, contact surface Ø 5mm. Cable length 2 metres. TP475A.0: Air probe, sensor Pt100. Stem Ø 4mm, length 230mm. Cable length 2 metres. TP472I.5: Immersion probe, sensor Pt100. Stem Ø 6mm, length 500 mm. Cable length 2 metres. TP472I.10: Immersion probe, sensor Pt100. Stem Ø 6mm, length 1000mm. Cable length 2 metres. TP49A: Immersion probe, sensor Pt100. Stem Ø 2.7mm, length 150mm. Cable length 2 metres. Aluminium handle. TP49AC: Contact probe, sensor Pt100. Stem Ø 4 mm, length 150mm. Cable length 2 metres. Aluminium handle. TP49AP: Penetration probe, sensor Pt100. Stem Ø 2.7mm, length 150mm. Cable length 2 metres. Aluminium handle. TP875: Globe thermometer Ø 150 mm with handle, complete with SICRAM module. Cable length 2 metres. Temperature probes without SICRAM module TP47.100: Direct 4 wires Pt100 sensor immersion probe. Probe’s stem Ø 3mm, length 230mm. Connection cable 4 wires with connector, length 2 metres. TP47.1000: Pt1000 sensor immersion probe. Probe’s stem Ø 3mm, length 230mm. Connection cable 2 wires with connector, length 2 metres. TP47: Only connector for probe connection: Pt100 direct 3 and 4 wires, Pt1000 2 wires.
